Project Description

FLAT BED CNC LATHE MACHINE

PRODUCT DETAILS

SPECIFICATIONS

ItemCK6132
Max. swing dia. over bedΦ320mm
Max. swing dia. over cross slideΦ145mm
Max. workpiece length450mm
Diameter of spindle bore52mm
Spindle taperA2-4
Spindle speed150~2500rpm
Chuck size160mm
Tool holder4 station
Tool bar section16x16mm
Main motor power4kw
X/Z axis position accuracy0.02/0.025mm
X/Z axis repeatability0.01/0.012mm
X/Z axis torque4/4N.m
X/Z axis fast feeding speed4/6M/MIN
Tailstock sleeve travel75mm
Tailstock taperMT4
Dimension1730x1000x1570mm
Weight1200KG

STANDARD CONFIGURATION

1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.

OPTIONAL CONFIGURATION

1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.

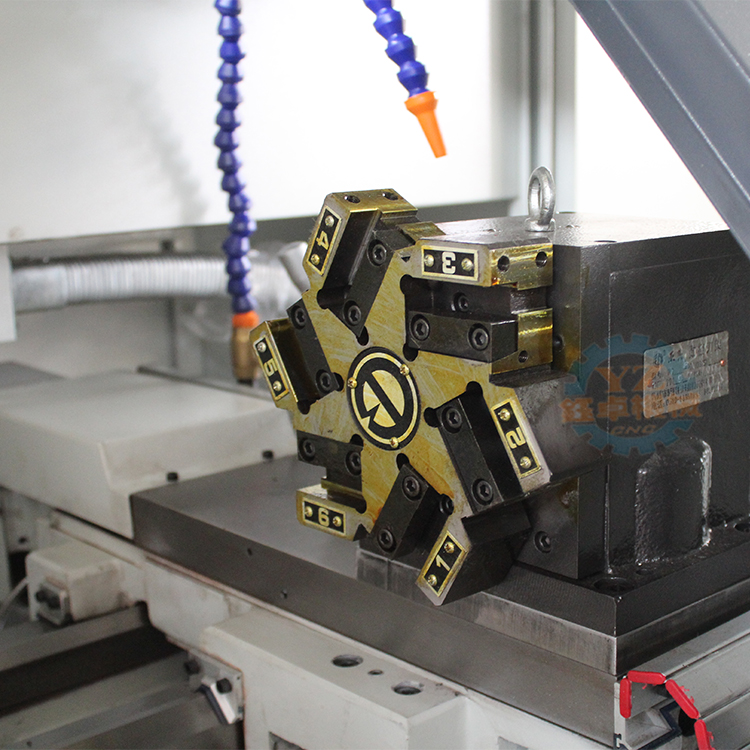

4). 4/6/8-station electric turret.
5). Automatic bar feeder, Chip conveyor.

YZ CNC MACHINERY ADVANTAGES

  • Over 18 years experience in the CNC machine industry.

  • Engineers are available to service machinery overseas.

  • Warranty period is one year, life-long after sale service.

  • Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
