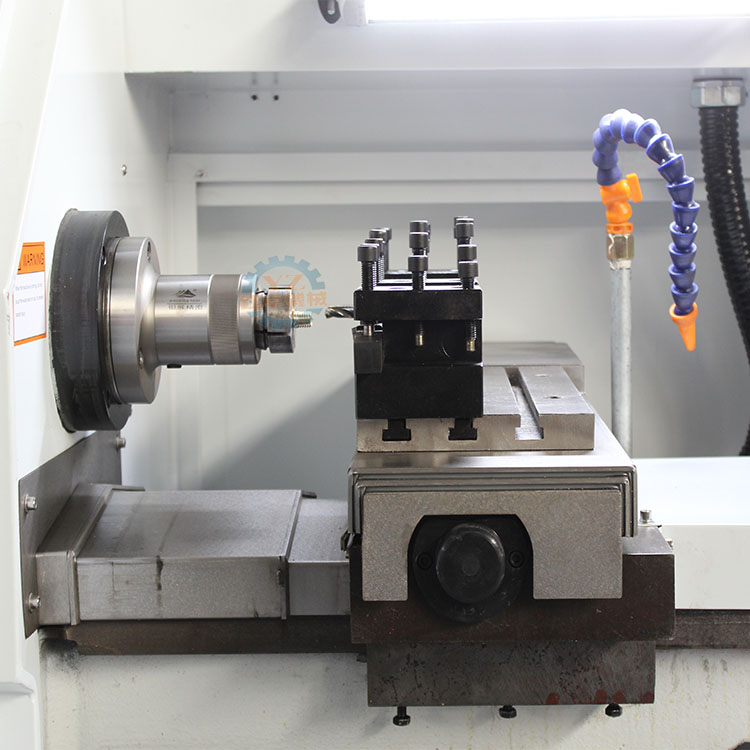

FLAT BED CNC LATHE MACHINE

PRODUCT DETAILS

SPECIFICATIONS

ItemCK0640
Drawn pipe diameter40mm
Max. swing diameter over slide100mm
Max. workpiece lengthCollet 200mm/Chuck120mm
Spindle head formA2-5
Spindle bore48mm
Max. rotation diameter over bed250mm
Lathe bed width260mm
X/Z repeat positioning accuracy0.012/0.013mm
X/Z maximum stroke260/240mm
X/Z fast-moving feed4000/8000 mm/min
Spindle speed range150-2500 r/min
Main motor power3 kw
Overall dimensions(LxWxH)1600x1000x1550 mm
Net weight950 kg

STANDARD CONFIGURATION

1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collets.
3) Gang Type Tool.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

OPTIONAL CONFIGURATION

1) CNC system: Siemens, Fanuc, KND.
2) Hydraulic chuck, pneumatic chuck ..
3) Hydraulic tailstock, pneumatic tailstock.
4) 4/6/8station electric tool post.
5) Automatic bar feeder.

YZ CNC MACHINERY ADVANTAGES

  • Over 18 years experience in the CNC machine industry.

  • Engineers are available to service machinery overseas.

  • Warranty period is one year, life-long after sale service.

  • Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
