Project Description

CNC MACHINING CENTER

PRODUCT DETAILS

SPECIFICATIONS

Item VMC1060
Travel X axis 1000mm
Y axis 600mm
Z axis 600mm
Spindle nose to table 150-750mm
Spindle nose to column 600mm
Feed Max. X rapid feed 24m/min
Max. Y rapid feed 24m/min
Max. Z rapid feed 18m/min
Cutting feed 1-10000mm/min
Torque 15/15/15N.m
Table Table size 1200x600mm
Max. load 800kg
T slot 5-18-100mm

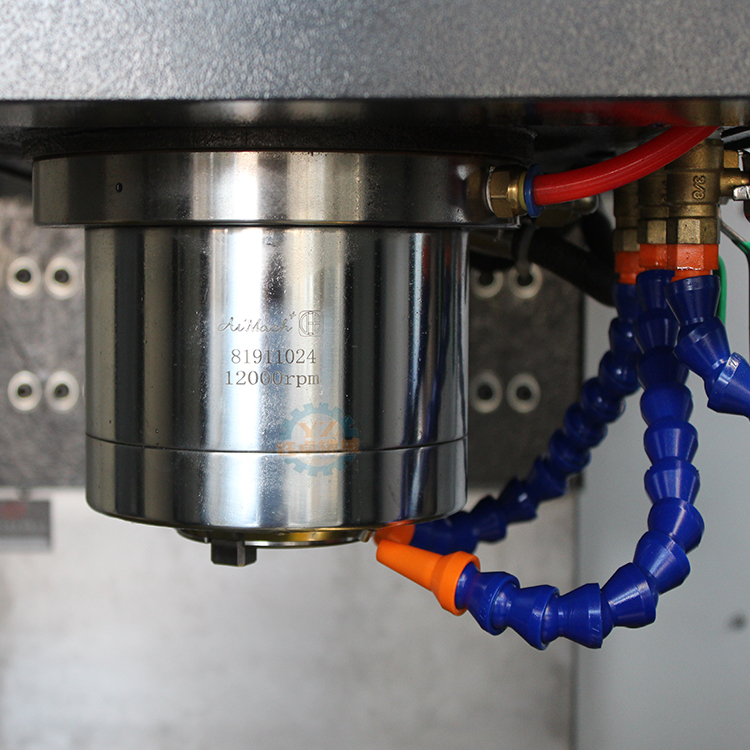

Spindle Type Belt
Speed 50-8000rpm
Spindle bore 150mm
Spindle taper BT40
Pull stud MAS403-40BT-1
Spindle motor synchronizing wheel Taiwan
Spindle belt Taiwan
Main motor 11/15kw
Acuracy Positioning Accuracy (JIS) ±0.015/300mm
Repeatibility (JIS) ±0.0075mm
Machine Size 3000×2500×2650mm
Weight 6000kg

STANDARD CONFIGURATION

  1. KND1000 CNC Controller.
  2. Taiwan BT40-150-8000 spindle.
  3. Taiwan Funnel Type Tool Changer.
  4. Taiwan Hiwin Roller Linear Guideway.
  5. Taiwan Hiwin Ball Screw.
  6. Automatic Central Lubrication System.
  7. Work Lamp.
  8. Full Enclosure Machine Guard.

OPTIONAL CONFIGURATION

  1. GSK KND Siemens Fanuc Mitusbishi GUNT.
  2. Arm type tool changer.
  3. Automatic chip conveyor.
  4. 4th axis and 5th axis.
  5. Spindle oil coolant, Center to water.
  6. Renishaw probe for workpiece and tool.
  7. Spindle direct connection.

YZ CNC MACHINERY ADVANTAGES

  • Over 18 years experience in the CNC machine industry.

  • Engineers are available to service machinery overseas.

  • Warranty period is one year, life-long after sale service.

  • Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
