SLANT BED CNC LATHE MACHINE

PRODUCT DETAILS

SPECIFICATIONS

ItemUnitTCK40A
1Max.Swing Over Bedmm450
2Max.Swing Over Carriagemm145
3Max.Turning Lengthmm400
4Lathe Bed Structure45° Integral inclined lathe
5Spindle NoseA2-6
6Spindle Speed Ranger/min50-2500(manual chuck)
7Spindle Boremm60
8Main Motor (C Axis) Spindle Motorkw7.5
9Milling Head (Y Axis)Side 4 And End 4
10Milling Head Powerkw2.3
11Milling Head Speedr/min3000
12Distance Of Each Milling Headmm60
13X Axis Travelmm500
14Z Axis Travelmm450
15Y Axis Travelmm240

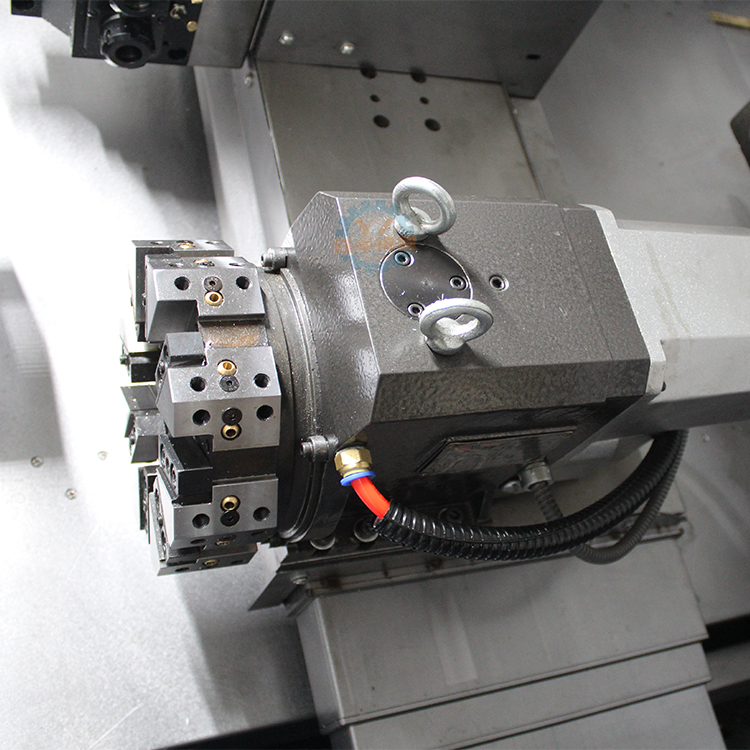

16Turret8-station electric Turret
17X/Z/Y Axis Rapid Feedm/min24/24/15
18X/Y/Z Positioning Accuracymm0.006
19X/Y/Z Repositioning Accuracymm0.003
20Spindle(C axis) Dividing positioning accuracy0.02”
21Spindle(C axis) Dividing Repositioning accuracy0.006”
22Weightkg3000
23Machine Sizemm2500x1800x1800

STANDARD CONFIGURATION

1.CNC controller: GSK980TC3.
2.Hydraulic chuck with hydraulic station.
3.8-station electric turret.
4.Y Axis 4 in end + 4 in side .
5.7.5KW main motor servo motor.
6-With Lighting system.
7-With Automatic lubrication system.
8-With Cooling device.
9-With Linear guideways.

OPTIONAL CONFIGURATION

1-Hydraulic collets .
2-Turret : Hydraulic turret
3-Y axis and power head with living tools .
4-Y Axis+ 4 in end + 4 in side;
5-Automatic bar feeder.
6-Automatic chip conveyor.

YZ CNC MACHINERY ADVANTAGES

  • Over 18 years experience in the CNC machine industry.

  • Engineers are available to service machinery overseas.

  • Warranty period is one year, life-long after sale service.

  • Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
