FLAT BED LATHE MACHINE

PRODUCT DETAILS

SPECIFICATIONS

ITEM UNIT Q1319
Max dia.swing over bed mm 630
Max dia.swing over cross slide mm 340
Max.length of work-piece mm 1500/3000/4000/5000
Width of bed mm 550
Spindle bore mm 200
Power of spindle motor KW 11KW
Spindle speed RPM FWD.12 STEPS， 36-380
Z axis feed grade/range Mm/r 26/0.07-1.33
X axis feed grade/range Mm/r 22/0.02-0.45
Carriage rapid traverse speed mm/min 4000
Cross slide rapid traverse speed mm/min 2300
Metric thread grade/range mm 24/1-14
Inch  thread grade/range T.P.I 40/2-28
Traverse of Cross slide mm 320
Max.traverse of turret mm 200
Tailstock quill travel mm 205
Tailstock quill Dia/taper 100mm /MT5#
Overall dimensions(L*W*H) mm 3660x1450x1560
Machine weight KG 4500

STANDARD CONFIGURATION

  1. Front and rear four-jaw manual chuck.
  2. Vertical four-station manual turret.

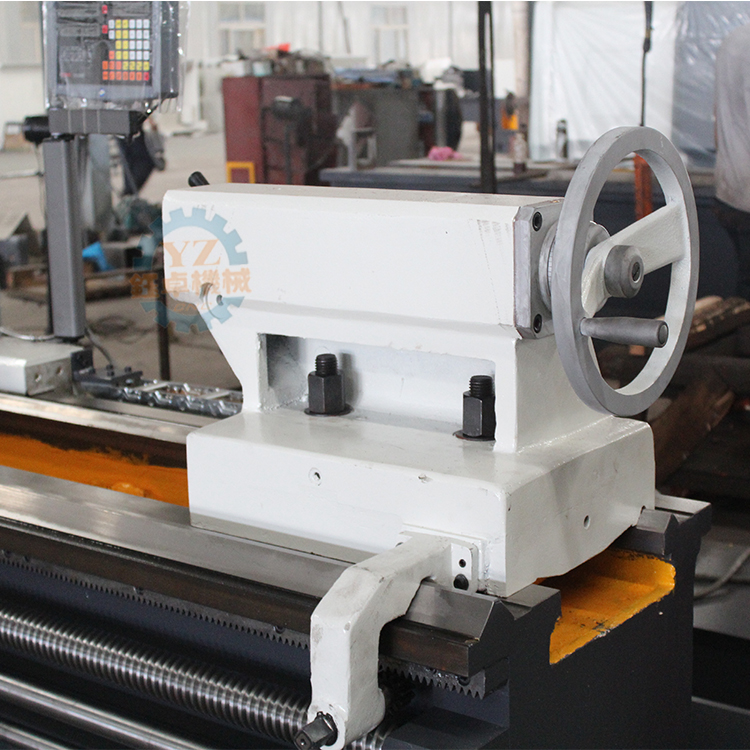

  3. With Manual tailstock.
  4. The rear bracket.
  5. Automatic lubrication system.
  6. Turning cooling system.

OPTIONAL CONFIGURATION

YZ CNC MACHINERY ADVANTAGES

  • Over 18 years experience in the CNC machine industry.

  • Engineers are available to service machinery overseas.

  • Warranty period is one year, life-long after sale service.

  • Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
