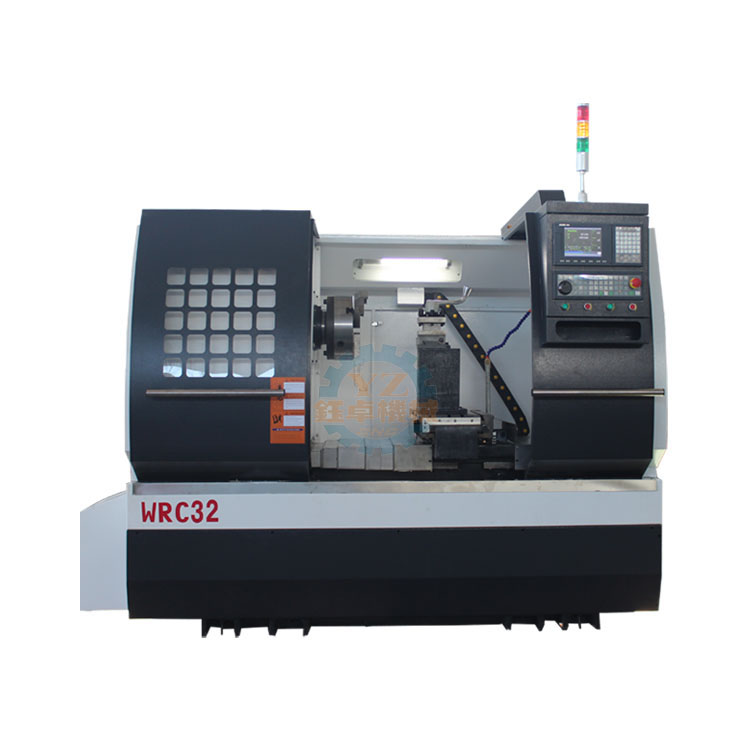

FLAT BED CNC LATHE MACHINE

PRODUCT DETAILS

SPECIFICATIONS

Model WRC32
Max. swing over bed 820mm
Max. Diameter of alloy wheel 32inch
Chuck size 320mm
Range of Spindle speed(RPM) 50-2000rpm
Spindle bore(mm) 82mm
Stations of tool carrier 4 position tool post
Max. size of tool post 25x25mm
Main motor power 5.5kw
Machine size(LxWxH)(mm) 2400x1730x2000
Net weight 3200kg

STANDARD CONFIGURATION

  1. 3-Jaw Manual  Chuck ;
  2. 4 station manual tool post ;
  3. Automatic lubrication system;
  4. Turning cooling system;
  5. With probing system (TP300 Pioneer Sensing Probe TP300);
  6. Diamond Cutter 1 set;
  7. CNC controller SYNTEC;
  8. Full Enclose (Security Guard Door);
  9. Specific Digital Optimization Software;
  10. Training Video CD;
  11. Work Lighting System.

OPTIONAL CONFIGURATION

  1. CNC system: KND1000, Touch Screen, Centroid.
  2. Custom made exclusive appearance.

YZ CNC MACHINERY ADVANTAGES

  • Over 18 years experience in the CNC machine industry.

  • Engineers are available to service machinery overseas.

  • Warranty period is one year, life-long after sale service.

  • Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
